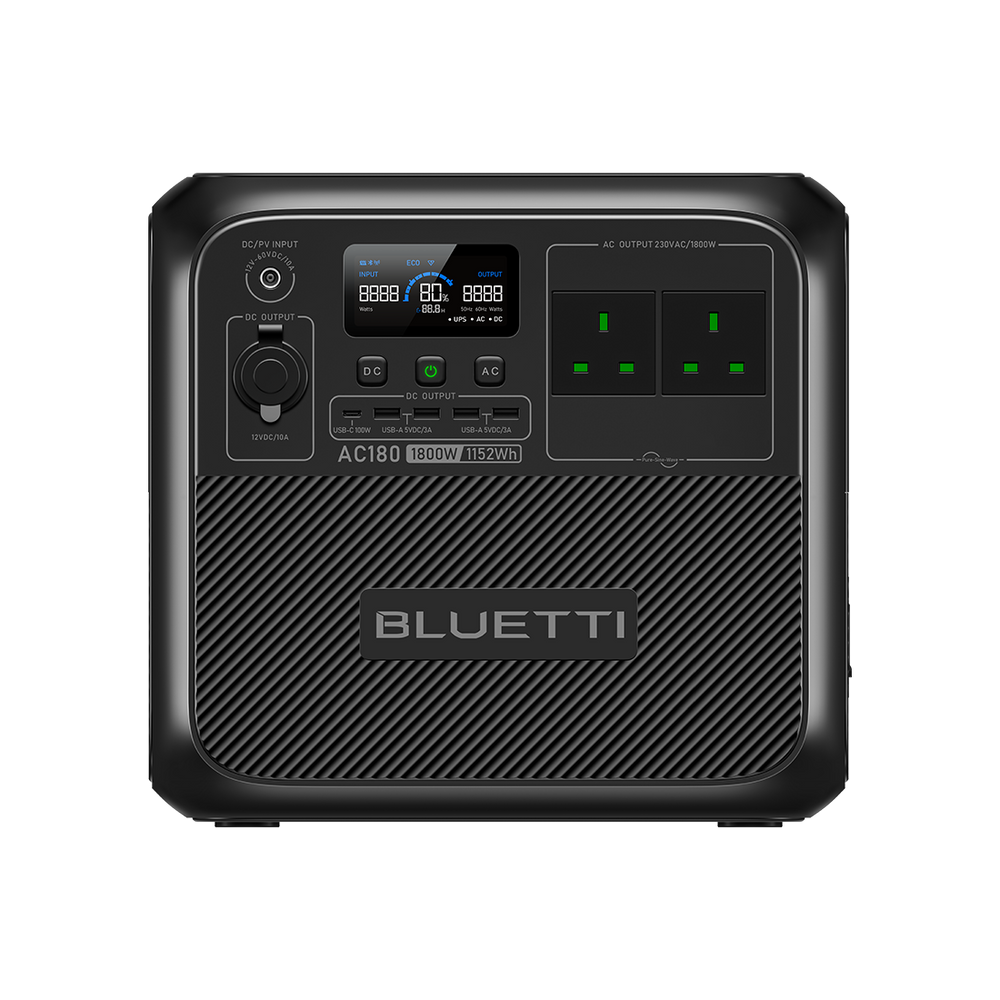

BLUETTI AC180/P Portable Power Station | 1,800W 1,152/1440Wh

FAQS

• Q1: What is Power Lifting Mode？

  A: In this mode, AC180 can run high-power heating devices up to 2,700W, such as space heaters, hair dryers, electric blankets, etc. Do NOT use this unit to run an air conditioner or washing machine.

• Q2: Can it charge and discharge at the same time?

  A: Yes.

• Q3: How do I know whether my appliance can work well with the AC180?

  A: Calculate the total wattage of your devices. AC180 should work if the load doesn't exceed its rated 1,800W.

• Q4: How long can it run my device?

  A:

  The AC180 has different running times depending on the device you're using it with.

  For high-power devices, the running time = Battery capacity × DoD × η ÷ load power.

  For low-power devices, the running time = Battery capacity × DoD × η ÷ (load power + self-consumption of AC180).

  DoD refers to Depth of Discharge and η is local inverter efficiency.

  For AC180, DoD is 90%, η is 85%, and self-consumption is about 15W.

  E.g. If you run a 100W blender with it, the running time will be:

  1152Wh × 90% × 85% ÷ (100W+15W) ≈ 7.66 hrs

  Note:

  1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.

  2) The above data is for reference ONLY.

• Q5: How quickly can I charge the AC180?

  A: The AC180 supports up to 1,440W input. Plug it into a wall outlet and turn on the Turbo Charging mode on the BLUETTI App, and you can fill it up in only 1.3-1.8 hours.

• Q6: What's the difference between Silent, Standard, and Turbo Charging modes?

  A:

  These are the 3 AC charging modes of AC180, each with a different input power and charging speed.

  It generates only 45dB of sound in the silent charging mode.

  Charging Mode	Input Power	Charging Time
  Silent	160W	3-3.5 hrs
  Standard	255W	2.1-2.6 hrs
  Turbo	600W	1.2-1.7 hrs

• Q7: Does AC180 support BLUETTI App control?

  A: Yes, via Bluetooth.

• Q8: What kind of solar panel should I choose for AC180?

  A:

  Please refer to the following requirements:

  1. Total open circuit voltage: 12-60V

  2. Max. input power: 500W

  3. Equipped with MC4 connectors.

  Highly Recommended:

  1× BLUETTI PV420: ≈ 3.7 hrs*.

  1× BLUETTI PV350: ≈ 4.3 hrs*.

  2× BLUETTI PV200: ≈ 3.9 hrs*.

  * For reference ONLY.

• Q9: Is the AC180 waterproof?

  A: No

• Q10: Can I use or charge AC180 in sub-zero temperatures?

  A:

  You can use the AC180 to power your devices in cold weather, but please avoid recharging it below freezing.

  The operating temperature ranges for AC180 are:

  Charging: 0℃-40℃/32℉-104℉

  Discharging: -20℃-40℃/-4℉-104℉

• Q11: Can it be laid on its side to save space?

  A: No, this may damage the internal structure. Please keep it in an upright position either during storage or moving.

• Q12: Is it possible to replace the built-in battery?

  A: No. If the internal battery pack malfunctions or is dead, please contact BLUETTI Customer Service.

• Q13: Can I expand its capacity by connecting it to B80/B230/B300/B300S batteries?

  A:

  Currently, the AC180 supports capacity expansion with B80, B230, or B300 batteries. To connect B80 batteries, you'll need the Aviation to DC7909 cable*, while the P090D cable is required for B230/B300 batteries. Please make sure the batteries are in Power Bank Mode.

  * Available in mid-July.
