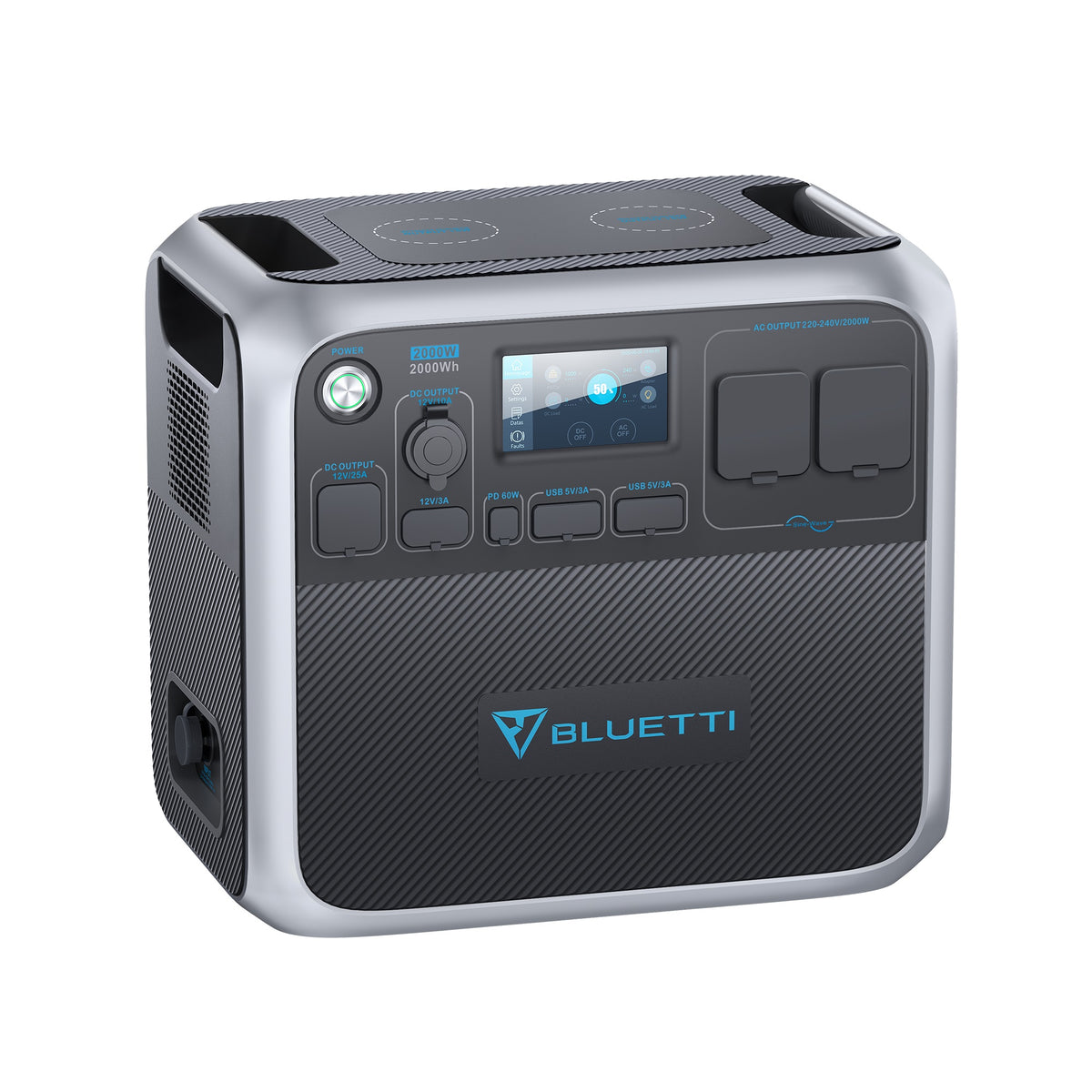

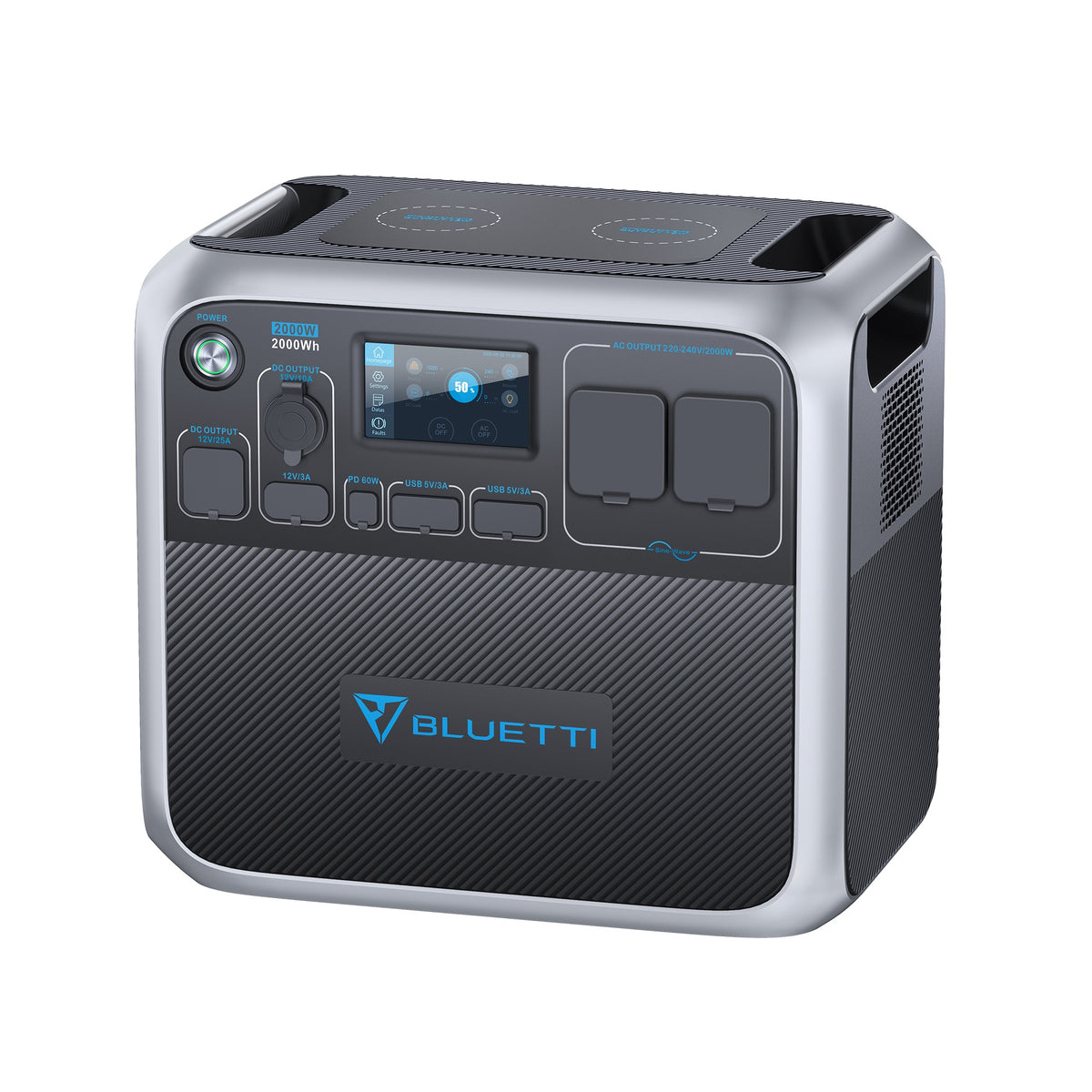

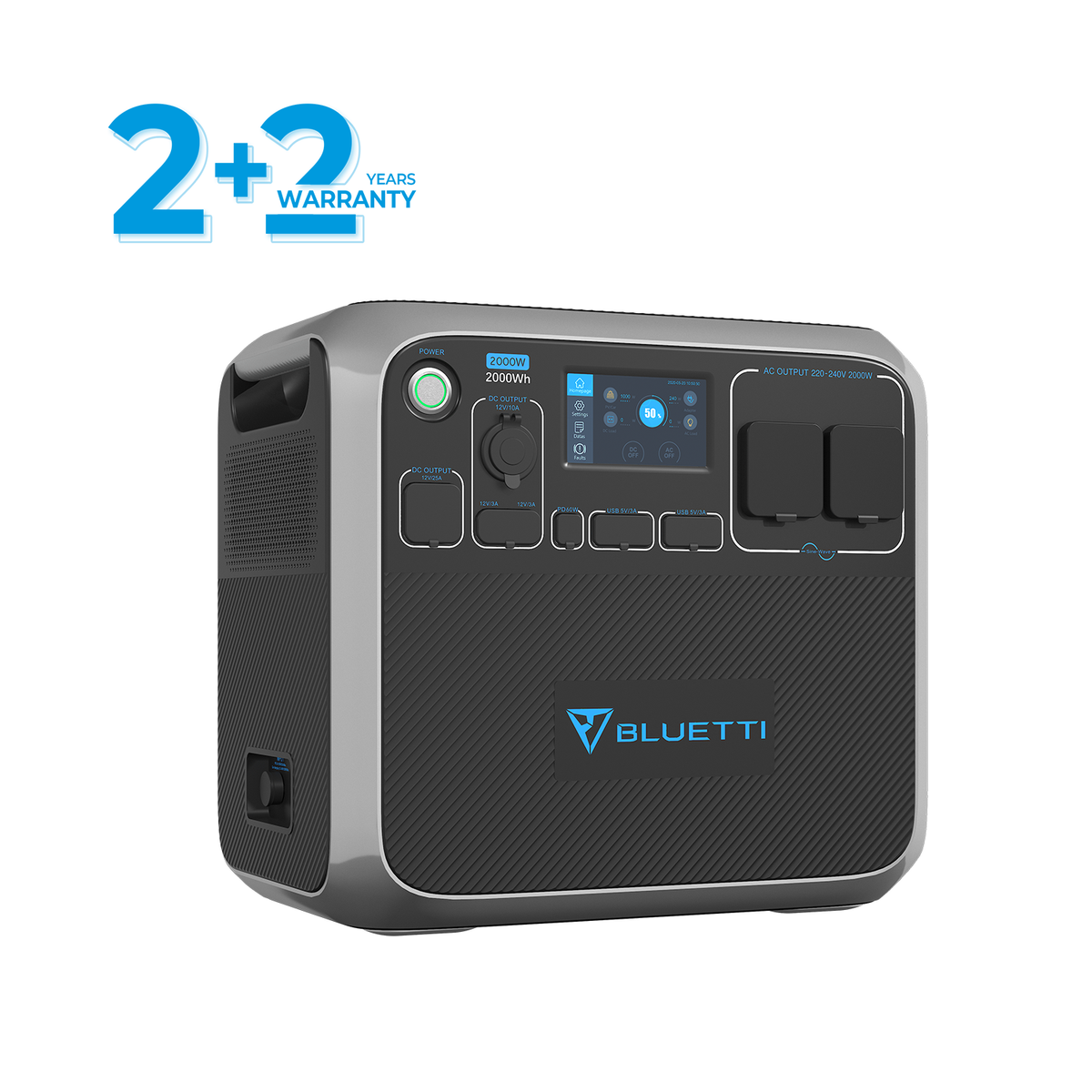

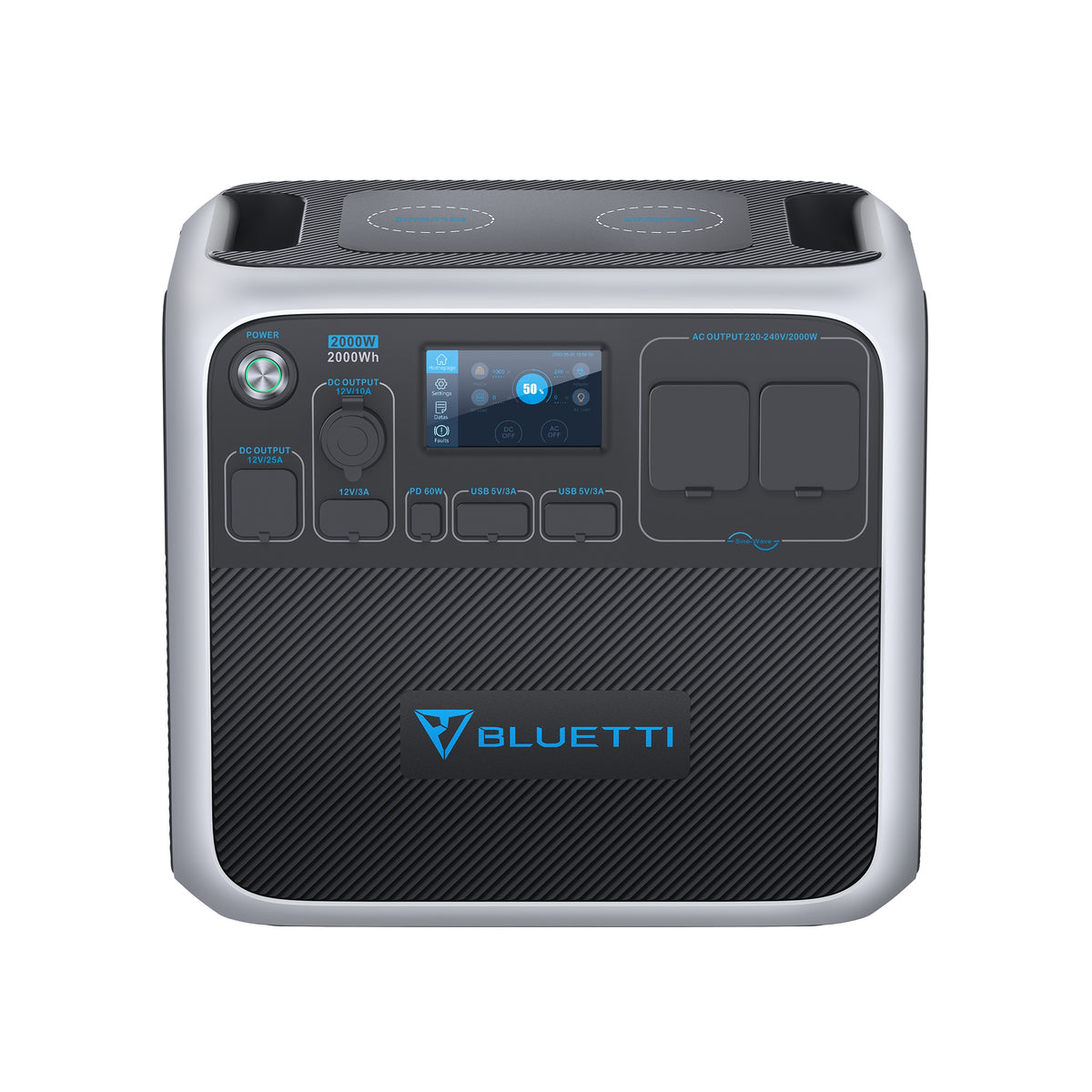

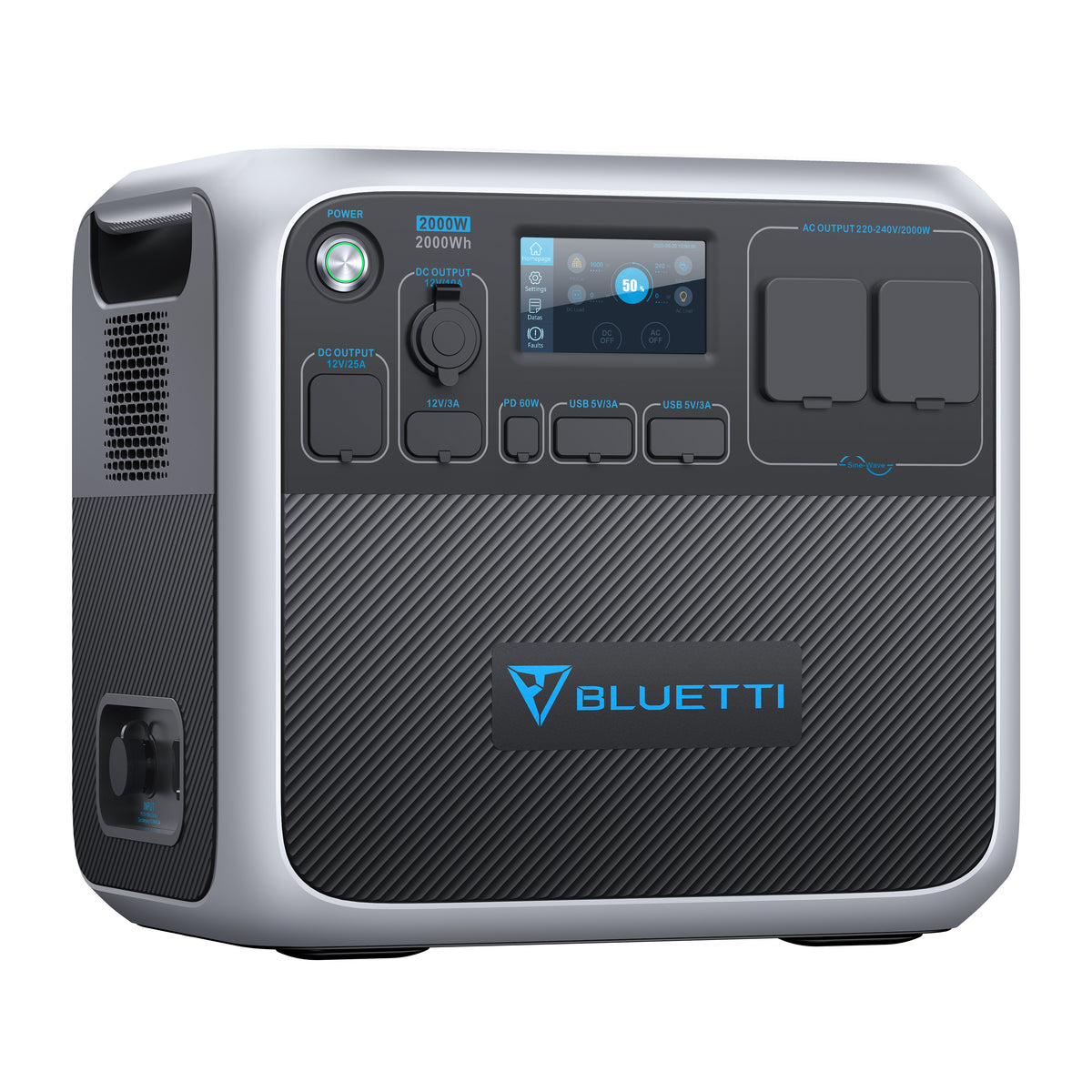

BLUETTI AC200P Portable Power Station | 2,000W 2,000Wh

FAQS

• Q1: What kind of battery chemistry does AC200P use?

  A:

  LiFePO4 battery cells, the safest lithium battery type today.

• Q2: What is the BLUETTI AC200P case made of?

  A:

  AC200P is manufactured with UL94V-0 flame retardant PC+ABS case and TPU-coated aluminum handle.

• Q3: How much capacity does AC200P have after 3500+ cycles?

  A:

  AC200P can maintain above 80% capacity after 3500+ cycles.

• Q4: What is the surge power of BLUETTI AC200P?

  A:

  It can reach up to 4800W max.

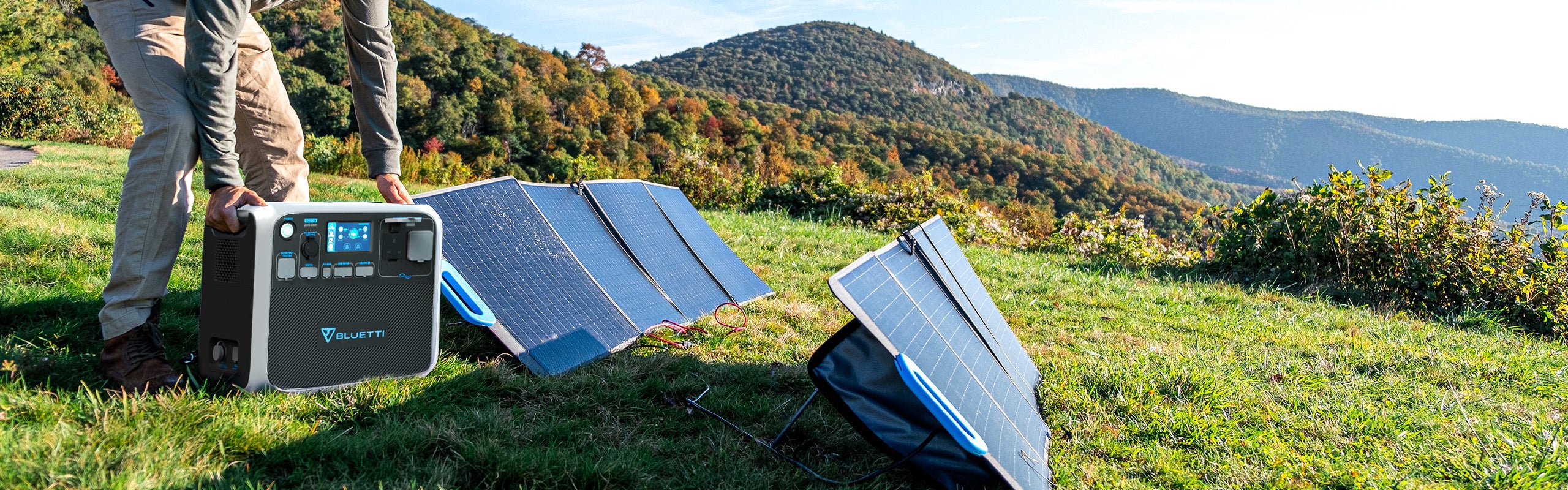

• Q5: How to choose the solar panel & what is the recharge time?

  we recommend to choose solar panel that meets below:

  1) open circuit voltage between 35-150v(OCV, whatever you connect the panel in series or in parallel), Max.700W, Max.12A

  2) MC4 Connector (if your solar panel has an anderson connector, you need to buy a anderson to mc4 charging cable)

  Note:total OCV below 35V or above 150V will trigger low-voltage/over-voltage protection. AC200P only receive 700W/12A(Max.) if total input power /current exceed 700W/12A.

  The recharge time various from different factors such as weather condition, the actual input solar power, temperature, angle, etc.

• Q6: How many solar panels can i connect to the BLUETTI AC200P?

  We suggest to chain at least 2pcs PV120/2pcs PV200 /1pc PV350 solar panel in series, and 6/5/3 pcs at the most respectively.

  Tips: Single BLUETTI PV120 or PV200 will not charge AC200P, We recommend at least 2 pcs BLUETTI PV120(120W solar panel) or BLUETTI PV200(200W solar panel) in series to charge AC200P！！！！！

• Q7: Can I charge and discharge AC200P at the same time?

  A:

  Sure. However, in order to better protect the cycle life of the battery, it is not recommended to charge and discharge the battery at the same time.

• Q8: How soon will the AC200P be fully charged by car charging?

  A:

  18hrs @12V and 9hrs @24V.

• Q9: How long will the BLUETTI AC200P run my device?

  A:

  2000Wh × DoD × η ÷ (load power) = charging time (estimated) Note: DOD is the battery discharge depth, η is the inverter efficiency AC200P: DOD=90%,η=90%

• Q10: How can the AC200P save power drain?

  A:

  You can turn on the ECO Mode. When on this mode, the AC inverter will automatically turn off after 4-hour low (≤50W) or no load to save power.

• Q11: Does AC200P support App Control?

  A:

  NO.

• Q12: How much noise does AC200P make?

  A:

  It depends on the loads AC200P carries.

  Load<1500W, 45dB Max., just like the sound generated from a working refrigerator;

  Load>1500W, 54dB Max., just like the sound generated from a percolating coffee-maker.

• Q13: How long is the MC4 cable?

  A:

  The solar charging cable(MC4-Aviator) is about 1.7m long and the cable in the solar panel pack is about 3m long.

• Q14: How do we ship this bundle?

  Due to the large size of AC200P Power Station & Solar Panels, we will ship them separately!

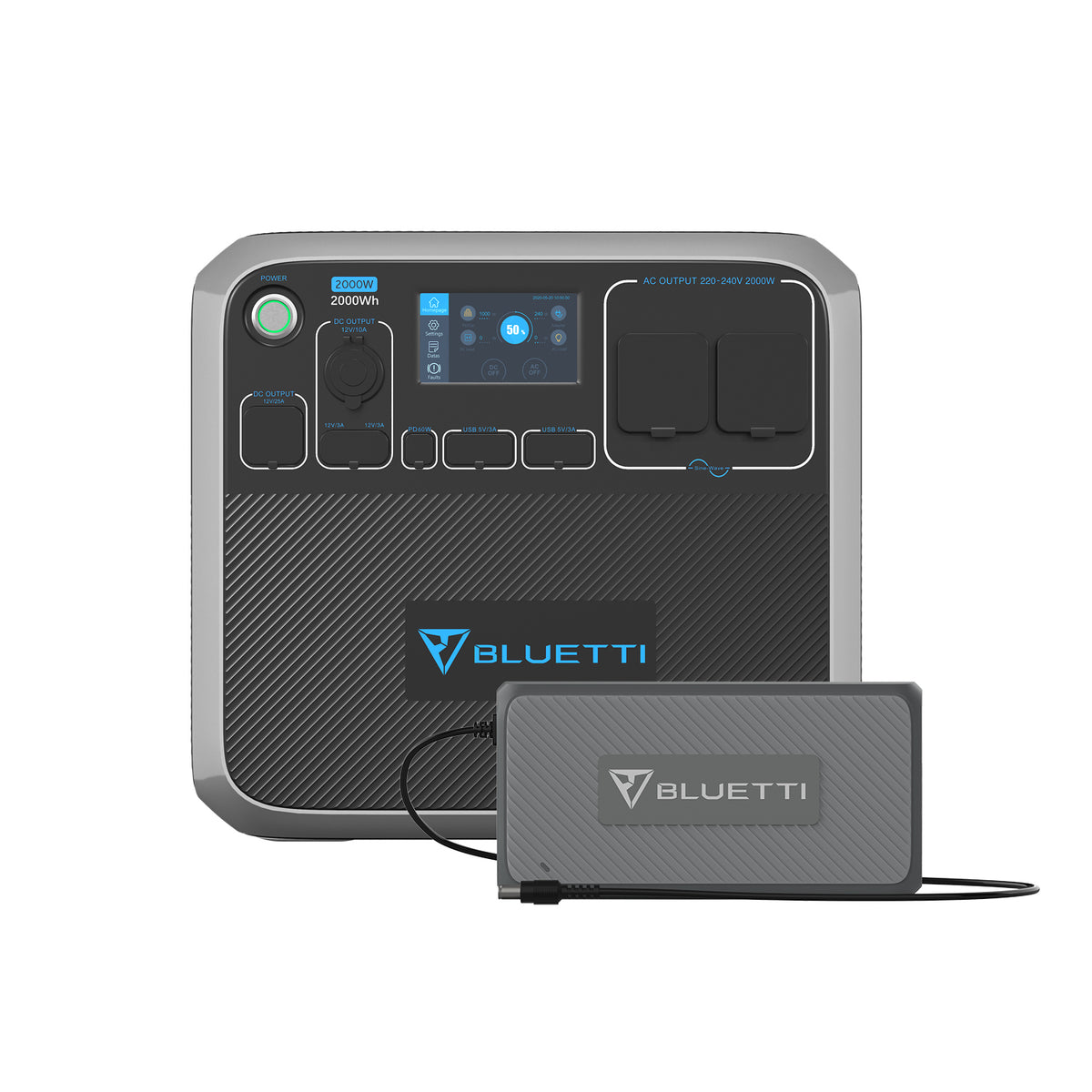

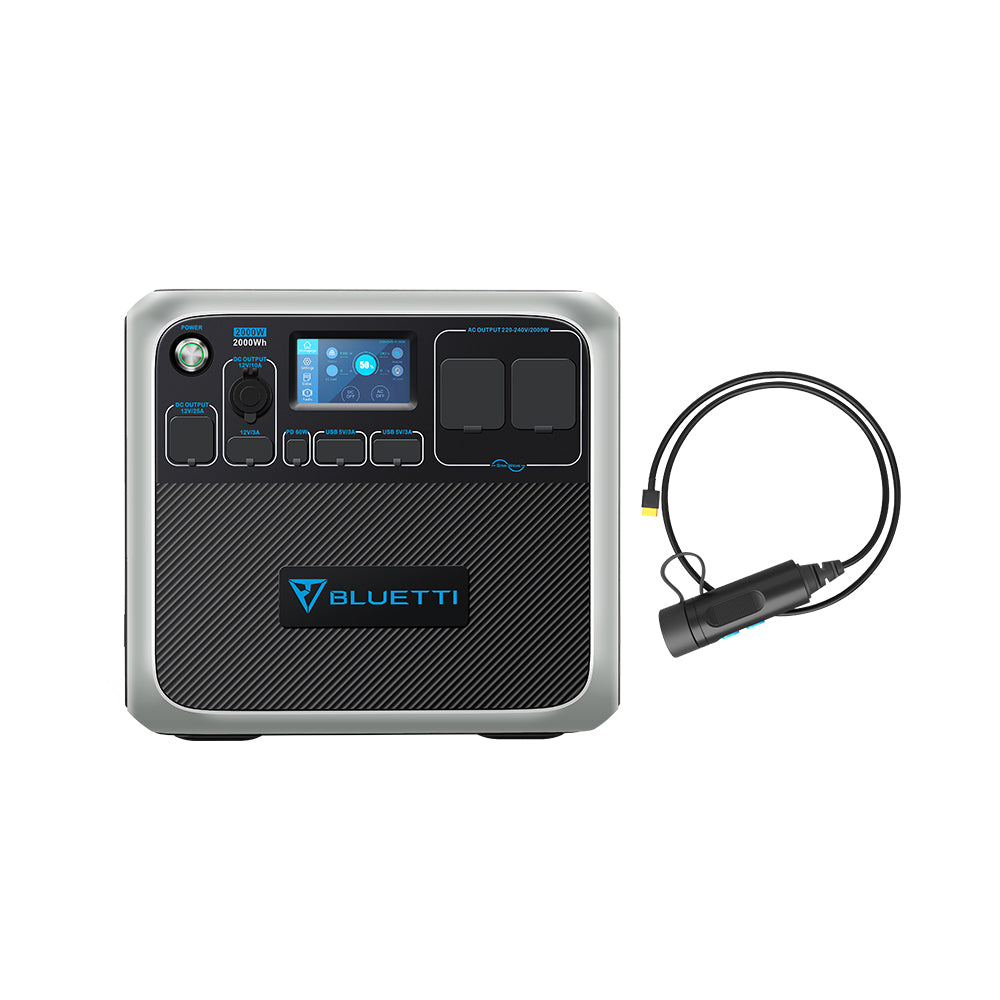

• Q15: How can I connect AC200P with B230 or B300 expansion battery?

  A:

  You can connect 1 B230 or B300 battery pack with AC200P via the P090D to XT90 cable*.

  * Sold separately

• Q16: What is the difference between the AC200MAX and AC200P?

  A:

  The main differences are:

  1. Output power and capacity: 2,000W AC power and 2,048Wh capacity for AC200MAX, while 2,000W and 2,000Wh for AC200P.

  2. Max. Input: 1,400W for AC200MAX, while 1,200W for AC200P.

  3. App Control: AC200MAX supports BLUETTI App control.
